Automatic Filling Labeling Machine for Food Items (Nuts Rice Potato Chips Candy Biscuits) Plastic Doypack Bags
제품 상세 정보
| 유형 | 타이핑하세요 : 다중 기능 패키징 머신 | 체중 (킬로그램) | 880 |
|---|---|---|---|
| 적용산업 | 공장을 제조하는 호텔, 의류 상점, 음식 & 음료 공장, 농장, 식당, 가정용, 소매점, 식품 판매점, 식료품 상점 | 애플리케이션 | 식량, 상품, 의학, 화학적, 기계류 & 하드웨어 |
| 핵심 구성요소 | 모터, 압력 용기, 펌프, PLC, 기어, 베어링, 엔진, 기어 박스 | 포장 유형 | 스탠드 업 파우치, 가방, 파우치 |
| 전압 | 220V,50/60HZ,1KW | 생산능력 | 30개 가방 / 분 |
필요한 제품을 선택하고 게시판에서 당사와 소통 할 수 있습니다.
| 포장기 유형 | |
|---|---|
| 그랜 팩 머신 | |
| 액체 포장 기계 | |
| 분말 포장기 | |
| 서 있는 봉지 포장 기계 | |
| 수직 포장 기계 | |
| 수평 포장기 | |
| 티백 기계 | |
| 커피 콩 포장 기계 | |
| 수평 포장기 |
제품 설명
Automatic Granule Liquid Filling Labeling Machine for Food Items (Nuts Rice Potato Chips Candy Biscuits) Plastic Doypack Bags
I. Core Selling Points: Precision, Efficiency, Flexible Production

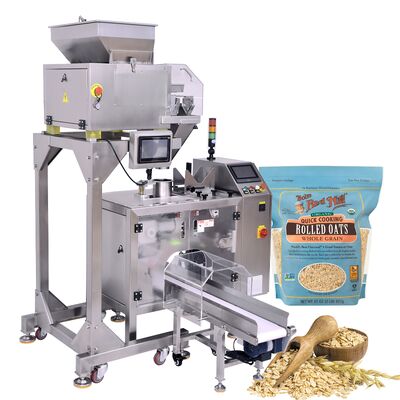

The single-station oat packaging machine is specifically designed for automated packaging of various oat products, including instant oatmeal, chia seed oats, fruit and nut blend oats, and oat flour. Featuring a PLC-based intelligent control system with touchscreen HMI, it offers intuitive and straightforward operation. Supports rapid mold change within ten minutes, enabling effortless switching between different bag types (such as three-side sealed bags, stand-up pouches, zipper bags) and specifications to meet diverse production demands.
II. Technical Advantages:
1. Compatible with Multiple Dosing Methods: Depending on material characteristics, selectable options include cup dosing (for granulated oats), screw dosing (for oat flour), or multi-head scale combinations (for mixed oats containing large fruit pieces), ensuring dosing accuracy.
2. High-Purity Design: All material-contact parts utilize 304 stainless steel, meeting food safety and hygiene standards. Optional pure electric drive system eliminates oil contamination risks from air compressors.
3. Intelligent Detection, Zero Waste: Equipped with empty bag detection, automatically pauses filling and sealing when no bag is present or bag opening fails, effectively preventing packaging and material waste.
4. Stable Sealing: Optimized dust removal design at the sealing area addresses oatmeal's dust-prone nature, ensuring secure, aesthetically pleasing, and airtight seals.
III. Technical Specifications:
1. Packaging Speed: 10-50 bags/minute (depending on material and bag type)
2. Packaging Range: Supports bags up to 100-200mm wide and 150-300mm long
3. Total Power: Approx. 2.5kW
4. Air Supply Requirement: 0.6-0.8MPa (if opting for pneumatic version)
Machine Specification of Rice Packing Machine:
| Item | 200 | 300 | 430 |
| Bag Material | Multilayer Composite Premade Bag (e.g.: PET/PE) | ||
| Bag size | 100mm≤L≤200mm | 100mm≤L≤300mm | 100mm≤L≤430mm |
| 70mm≤W≤150mm | 80mm≤W≤300mm | 80mm≤W≤300mm | |

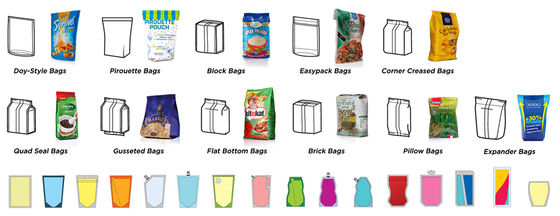

| Bag Type | 3 Side Seal Bag, Stand-up Bag | ||
| Upgradable Bag Type | N/A |
Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device) |
|
| Speed | 0~26bags/min | 0~15bags/min | |
| Sealing Type | Plain weave | Straight grain, pitch is 1mm (Optional reticulate) | |
| Sealing Width | 8mm | 10mm(5--20mm can be customized) | |
| Voltage | 220V, Single-phase, 50/60HZ, 1KW | 220V, Single-phase, 50/60HZ, 1.2KW | |
| Air Pressure | 0.65Mpa | ||
| Air Consumption | 0.2m³/min | 0.3m³/min | |
| Standard machine, no additional function | |||
| Body Dimension | 1080*535*1010mm | 1770*600*1230mm | 1770*600*1360mm |
| Packing Dimension | 1240*670*1320mm | 1860*710*1550mm | 1860*710*1650mm |
| Export non-fumigation wooden case | |||
(We can provide you with exclusive packaging machine customization services according to your needs! Of course,If you need, we can also provide you with customized bag service)
